DMSOLAR 93KW Grid-Tie Photovoltaic (PV) Power System, designed for residential or commercial, is a turnkey solution with everything included for standard setup (installation not included)!

Bill of Materials:
* Electrical drawing and tech support - FREE!
* $10 million dollars liability insurance coverage
* 372x Hyundai 250W Mono Panels. CEC PTC rating: 226.1W!

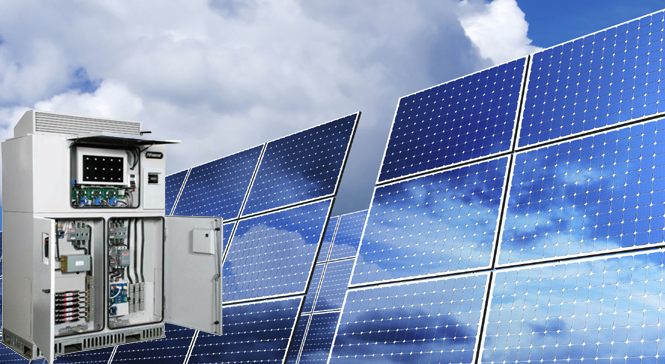

* 1x PVPowered 75KW PVP75kW-208 inverter
* 1x PVP Subcombiner
* 1x PVPowered 36 Circuit String Combiner with Fuses, PVP-SCB-52
* 31x 100'#10 AWG cable with MC4 connectors
* UniRac SolarMount(E)volution**
- 248x 132" SM-E Beam, 012132M
- 620x SM-E One-Flange, 004009M
- 620x SM-E Lag Bolt, 5/16 x 3 1/2", 030023C
- 682x SM-E Mid Clamp, 24-38mm, 002105M
- 124x SM-E End Clamp, 24-36mm, 002010M
- 186x SM-E Retaining Splice, 003002M
- 62x SM-E Grounding Lug, 008002S
- 372x SM-E Grounding Clip, UGC-3 , 008006S
- 83x SM-E Leveling Gauge, 003004M Solar Panel Spec:
- Hyundai MG Series


PVPowered 75KW Electrical Specifications
Continuous Power Output 75kW
CEC Weighted Efficiency (%) 95.5% (208V), 95.5% (480V)
Maximum DC Input Voltage (VOC) 600
DC Peak Power Tracking Range (V) 295 - 500
DC Imp Nominal Current (A) 267
AC Nominal Voltage (V) 208 and 480
AC Operating Range (V)
208 183 - 228
480 422 - 528
AC Frequency Range (Hz) 59.3 - 60.5
AC Maximum Continuous Current (A) 208 (208V), 90 (480V)
Standby Losses (W) 42
Harmonic Distortion (%THD) <3%
Power Factor >.99
Mechanical Specifications
Enclosure NEMA 4
Construction Powder Coated Steel
Mounting Pad Mount
Weight (lbs) 2,750
Cooling Forced Convection
Temperate Range (ºC) -30 to 50
Isolation Transformer Yes
Inverter Spec:
- Inverter Spec
